제품 상세 정보:
|
| CPU: | RK3588 8 코어 | RAM: | 8GB/16GB 선택 |
|---|---|---|---|
| ROM: | 32GB/64GB/128GB/256GB 선택 가능 | 하우징 소재: | 금속 |
| OS: | 안드로이드 12 | 와이파이: | 5G+와이파이 6 |
| 듀얼 유선 네트워크: | 듀얼 기가비트 이더넷 | 주택 색: | 검은색 또는 주문 |
| 결의: | 8K | 인터페이스: | USB, RJ45, HD MI, LAN, 오디오 |
| 이더넷: | 10M/100M/1000MX 2 | 맥스 결의안 출력: | 8K |
| 기능: | 와이파이, BT, Wlan, 오디오, 스피커, 기타 등등. | NPU: | 6Tops,int4/int8/int16/FP16 |
| 종류: | 미디어 플레이어 | 보증: | 1년 |
| 소재: | 금속 용기 | 이미지 형식: | JPG/JPEG/BMP/PNG/GIF |
| 지원: | 밖에 HD, 블루투스, 와이파이, RJ45 | 전원 공급: | 12V |
| 강조하다: | RK3568 8K Media Player Box,256GB RK3568 Media Player Box,8GB RAM RK3568 Media Player Box |
||
RK3568 8K MEDIA PLAYER BOX
| System | CPU | RK3588 octa-core CPU 8nm process 4 x Cortex-A76 and 4 x Cortex-A55 | |||||||||||||
| GPU | ARM Mali G610 MP4 GPU | ||||||||||||||
| NPU | 6Tops,int4/int8/int16/FP16 | ||||||||||||||
| MCU | for low power control | ||||||||||||||
| RAM | 8GB/16G (optional) | ||||||||||||||
| Internal Memory | 32GB/64GB/128GB/256GB(optional) | ||||||||||||||
| Operating System | Android 12 | ||||||||||||||
| Network | WiFi | IEEE 802.11 a/b/g/n/ac | |||||||||||||
| Dual-Ethernet | Support 10/100/1000M Ethernet*2 | ||||||||||||||
| Mobile Network | Supports wireless 4G network | ||||||||||||||
| Bluetooth | Bluetooth5.0 | ||||||||||||||
| Interfaces | Upper Layer Interfaces | Type_C | USB Type_C*1 | ||||||||||||
| DC holder*1 | DC_12V input 5.5*2.5mm plug | ||||||||||||||
| DC terminal input interface*1 | DC_12V input 4PIN pitch 3.81mm terminal | ||||||||||||||
| Headphone | 3.5MM support stereo with MIC headphone output port | ||||||||||||||
| USB 3.0 | USB 3.0_A*2 | ||||||||||||||
| HDMI_OUT_1 | HDMI-A 2.1 output*1 (Maximum support 7680*4320 60HZ output single HDMI display) | ||||||||||||||
| SIM card | SIM card slot*1 | ||||||||||||||
| Ethernet port | Support 10/100/1000M Ethernet*1 | ||||||||||||||
| Speaker | Dual channel 4 Ohm 5W speaker interface 4PIN pitch 3.81 green terminals *1 | ||||||||||||||
| HDMI_IN*1 | HDMI-A 2.0_in*1(Supports up to 3840x2160p@30Hz and 4096x2160p@24Hz video inputs) | ||||||||||||||
| Lower Layer Interfaces | RS232 COM | RS232 output DB9*2 | |||||||||||||
| USB 3.0 | USB 3.0_A*2 | ||||||||||||||
| HDMI_OUT_2 | HDMI-A*1 Support 4K60HZ output (with DP video output, one of two choices) | ||||||||||||||
| DP(Display Port) | DP display output interface *1 maximum support 7680x4320@30Hz output *1 (with HDMI_OUT2 video output, one of two options) | ||||||||||||||
| Ethernet port | Support 10/100/1000M Ethernet*1 | ||||||||||||||

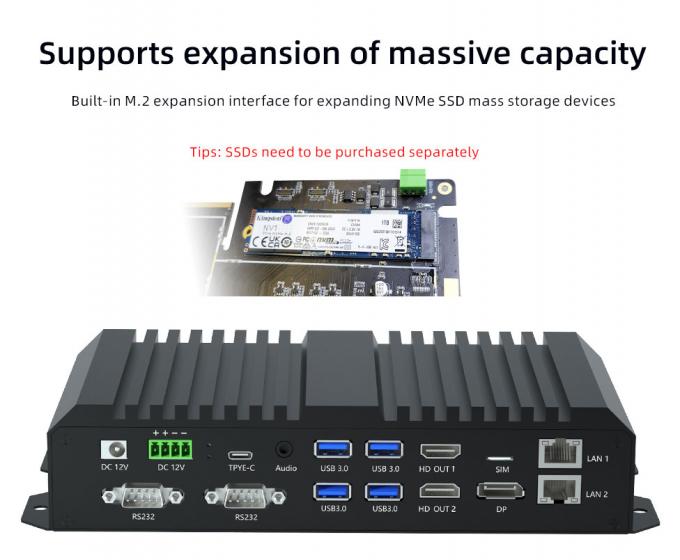

| M.2 Built-in SSD interface | M.2 Built-in SSD expansion interface*1 | ||||||||||||||
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | ||||||||||||||
| Indicator light | Indicator light | Red and blue | |||||||||||||
| Button | Button | Upgrade button*1 | |||||||||||||
| Usage environment | Working Environment | Temperature:-20℃~60℃,5%-85%RH(No condensation) | |||||||||||||
| Storage environment | Temperature:-20℃~70℃,5%-95%RH(No condensation) | ||||||||||||||
| Material | Shell material | Aluminum alloy + metal profile | |||||||||||||
| Size | Product Size | Shell size:244*128*49.5MM | |||||||||||||
| Package Size | Single package size | Single box size:286*175*110MM | |||||||||||||
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
Why choose us
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 12 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages. 5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength. 6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
