RK3568 Android 11 OS Media Player with Multiple Network Interfaces and Interactive Mode Interfaces

 RK3568 Edge Computing Device RS232 USB 3.0 AIoT Media Player ​

Quad-core RK3568 Android Decoding Driver Integrated Media Player

Specification(Model No.:AD-0146 )

Overview:

-Intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution.

-Android 11 OS.

-Enhanced power management circuit. Support commonly used external devices.

-Rich interfaces and stable performance.

-Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines,educational video terminals and other equipment.



Characteristic:

① Support HD MI displays (4K ).



②  Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.

③  Multiple interactive mode interfaces: HD MI X2, Audio , RS232, USB 3.0 X2 , USB 2.0 X2, Gigabit Ethernet , SIM, TF









Application Field

■ Commercial advertising display machine

■ POS machine

■ Digital photo frame advertising machine

■ Touch all-in-one machine

■ Self-service vending machine

■ Vending / Kiosk

■ Media player box

■ Face recognition device

■ Roboter





Basic hardware specifications:

System	CPU&GPU		Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
	RAM		2GB/4G (optional)
	Internal Storage		8GB/16GB/32GB/64GB(optional)
	OS		Android 11
Network	WiFi		IEEE 802.11b/g/n(optional)
	Ethernet		Support 10/100/1000M Ethernet
	Mobile Network		Support wireless 4G network(optional)
	Bluetooth		Bluetooth5.2
Interface	RS232		RS232 com port, male head DB9*1
	USB 2.0		USB 2.0_A*2
	HDMI_OUT_2		HDMI-A output supporting 1920*1080 60HZ
	DC holder*1		DC_12V input 5.5*2.1mm plug
	Headphone		3.5mm stereo headphone output
	USB_OTG		USB_A*1
	USB 3.0		USB 3.0_A*1
	HDMI_OUT_1		HDMI-A 2.0 output(supporting 3840*2160 60HZ)
	SIM card		SIM card slot*1(optional)
	Extended memory port		TF card slot*1
Button	Button		Upgrade button*1
Environmental Conditions	Working Environment		Temperature:-20~60℃,5%-85%RH (No condensation)
	Storage environment		Temperature:-20~70℃,5%-95%RH (No condensation)
Material	Shell material		Metal
Size	Product Size		Shell size:190.6*98.9*34.7mm

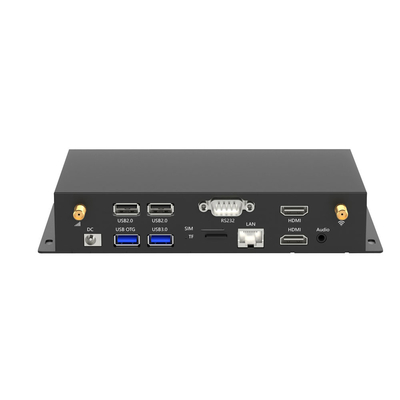

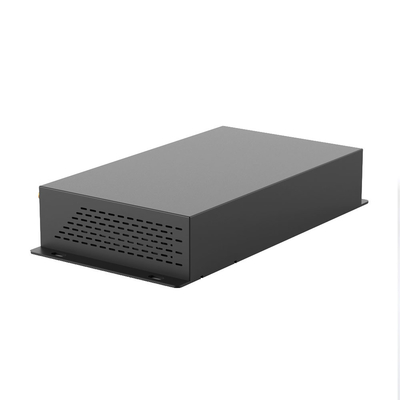

Product pictures:













Rockchip RK3568 Solution: ANDROID 11 OS,

2GB RAM/16GB ROM, Only Main board (no Sub small board).

WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!

Service:

1. PCBA design

2. Housing design

3. Software and hardware customization

4. Logo print on housing

5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function

6. Good quality products

7. full after-sales service with technology support

8.100% QC check before shipping

About Sunchip

Established in 2011, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider. Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base.

Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields.

Sunchip has a over 80 research and development engineers team,high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including USA, UK, Germany, Italy, Japan,Korea, Turkey, Russia, Mexico, Brazil, Thailand ,Middle east and South Africa. Our sales team attends major exhibitions every year to close the distance with customers. Based on the principle of customer first, sales engineers have assisted customers to complete many projects, which are well received by customers. We are looking forward to cooperating, growing and developing with you sincerely.

[you can also tell us your requirements, so that we advise you a matched solution]



FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!





New Arrival!!!



8K RK3588 AIot Edge Computing industrial box with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.



Here is the product image , few box in stock now, welcome to contact me to get more details information.
